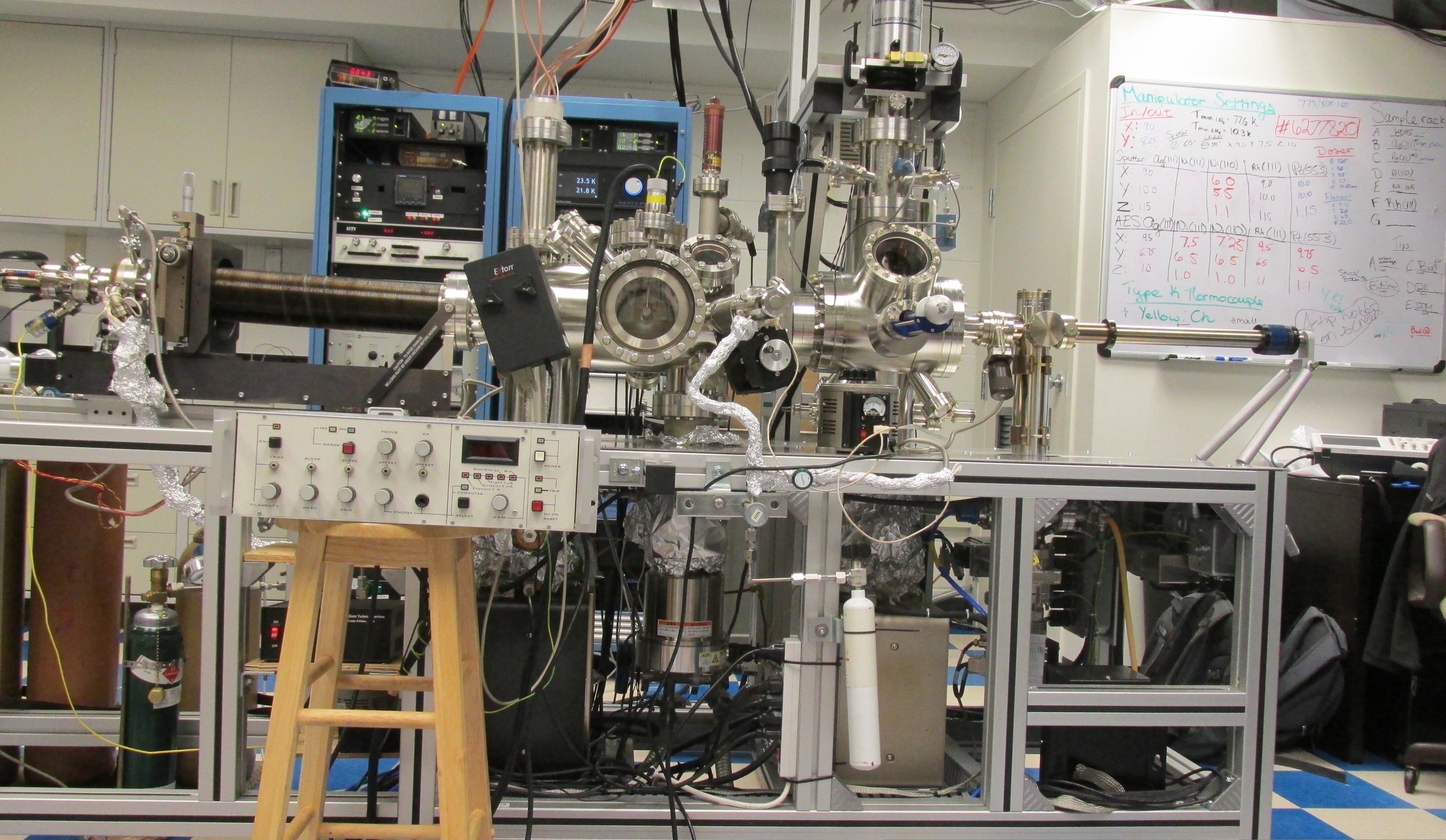

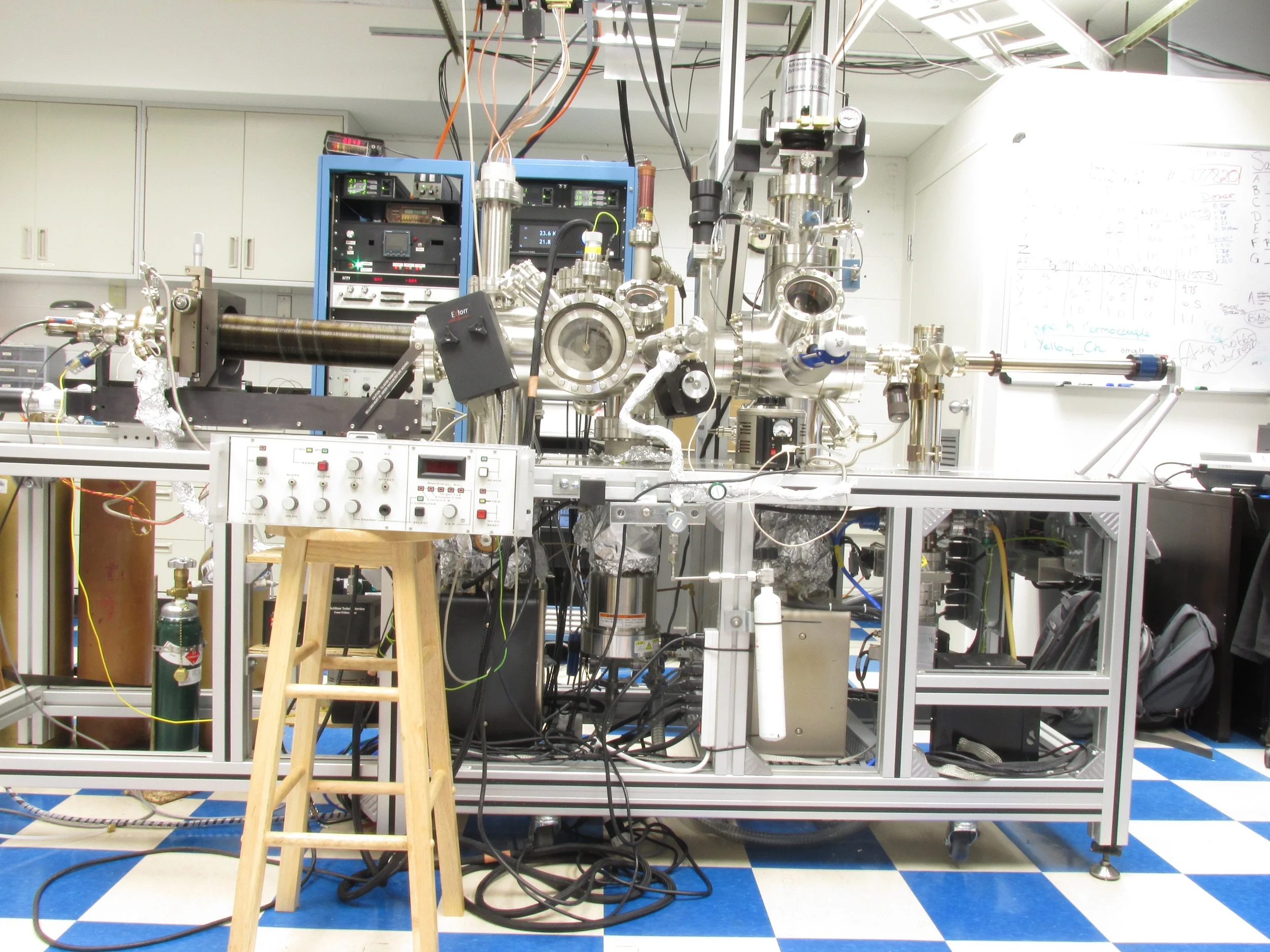

RHK PanScan Freedom, ccHe STM

RHK PanScan Freedom, ccHe STM

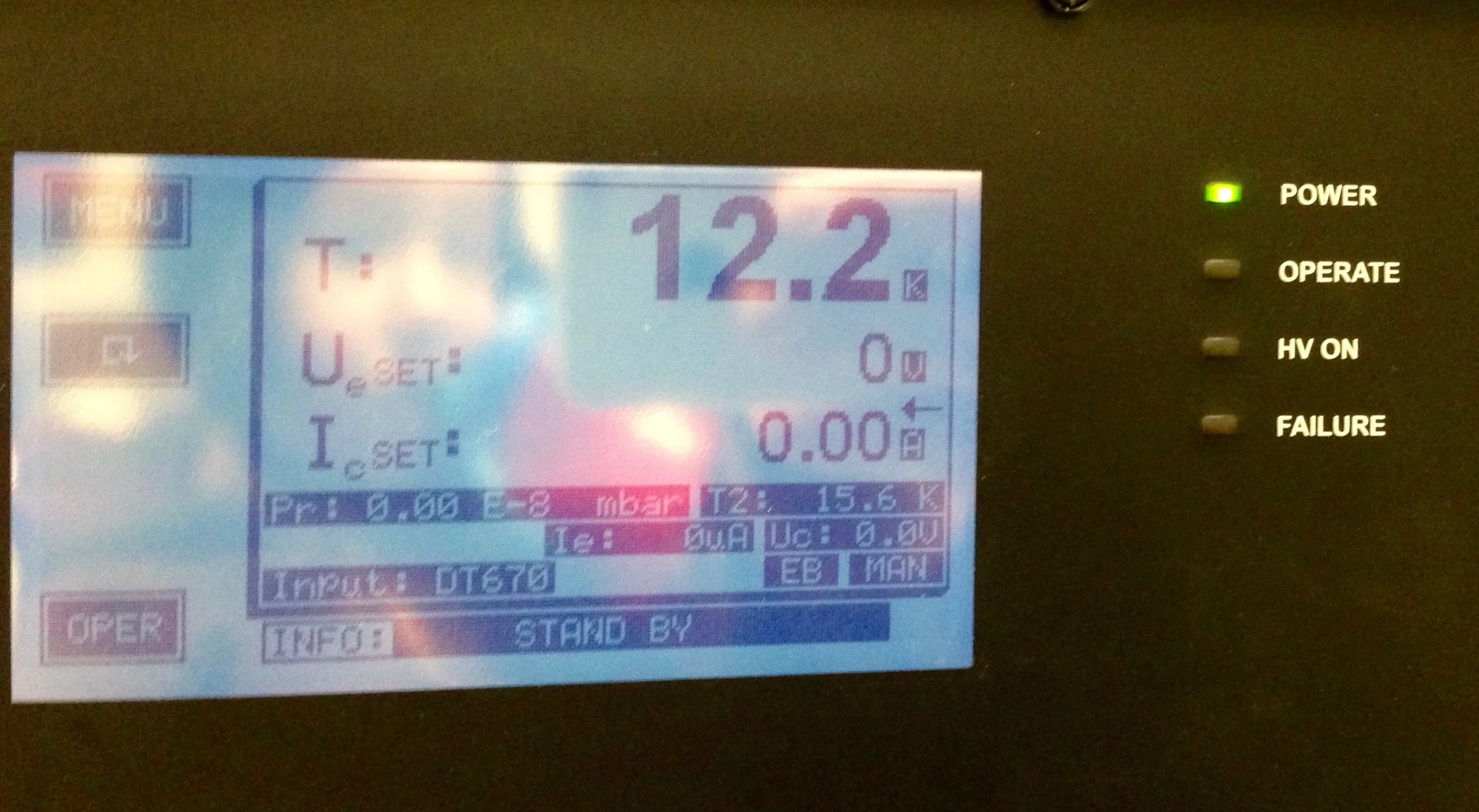

Base temperature of ccHe STM scanner.

Base temperature of ccHe STM scanner.

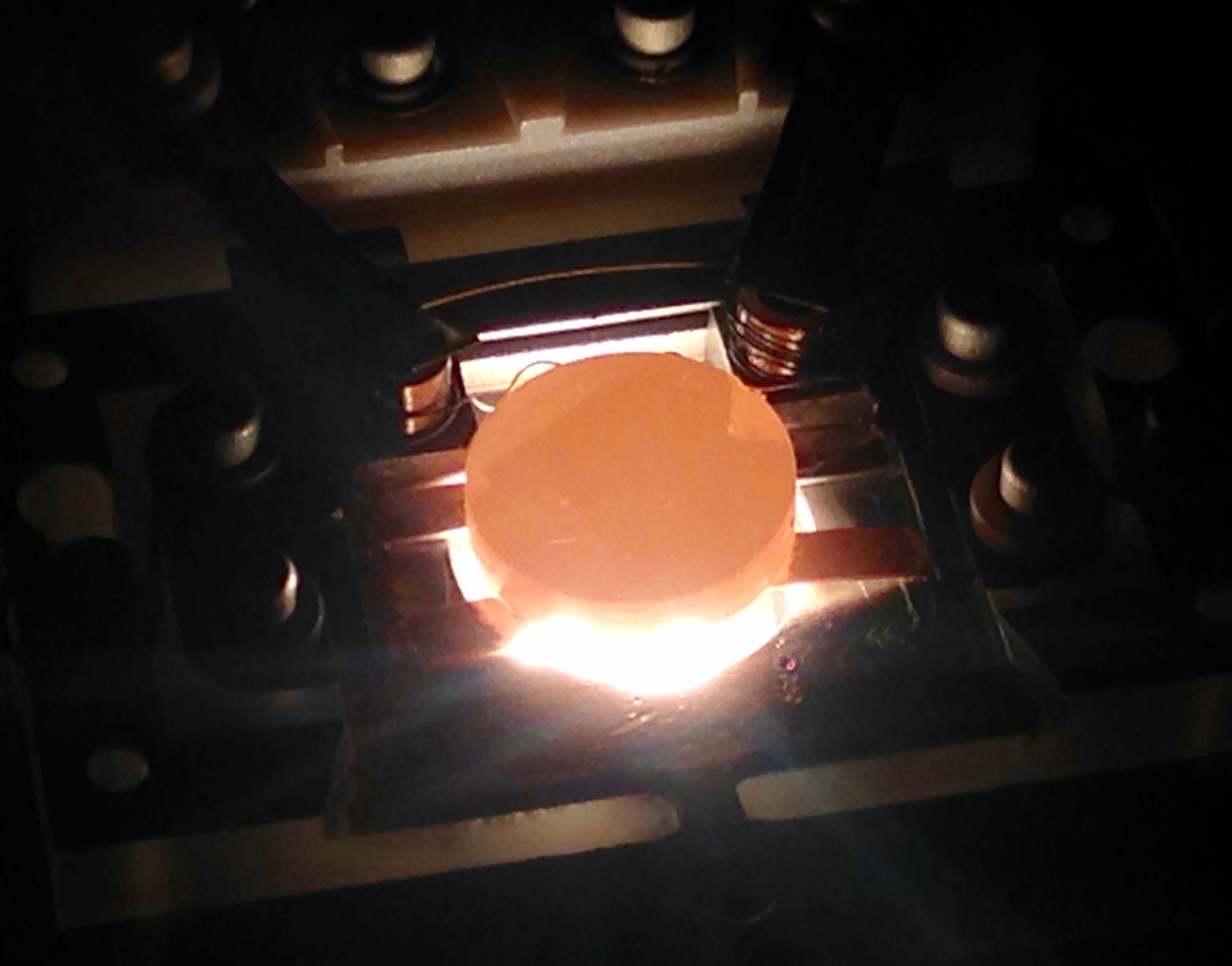

Annealing Pt(553) crystal at 1250 K.

Annealing Pt(553) crystal at 1250 K.

Roger collecting data.

Roger collecting data.

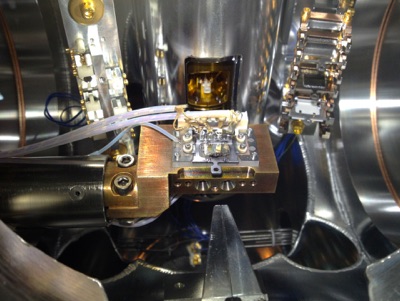

ABOVE: View of RHK Technologies Pan-style STM.

          Center: (Gold) STM, white strip is exchangeable tip holder

          Left: Tip storage and conditioning

          Right: Sample storage and conditioning



View of RHK Technologies Pan-style STM through back-side window to tip-sample junction

          Upper: Sample holder

          Lower: Tip



Ni(110) sample mounted on Ta sample holder with Type-K thermocouple connection.

Sample holders from McAllister Technical Services (Coeur d’Alene, ID)

Sample from Surface Preparation Laboratory (Zaandam, NL)



Sample transfer from STM chamber to manipulator.  Ag(111) crystal is mounted on a specially designed sample holder with type-K thermocouple contacts.  The STM chamber wobblestick is inserting the sample into the manipulator for preparation.



The sample is now mounted in the manipulator and can be retracted to the preparation chamber.

Prep/Analysis Chamber



Ultra-High Vacuum Surface Science Analysis Chamber

Equipped with PHI 10-110 CMA for Auger Electron Spectroscopy and a UTi 100C QMS for TPD and RGA.



The sample is mounted on a custom-built sample holder that fits into a sapphire receiver, affixed to a copper bloc.  The bloc can be cooled with LN2 to chill the sample to less than 90 K.


Lab Renovation
